Default Almost a catastrophe

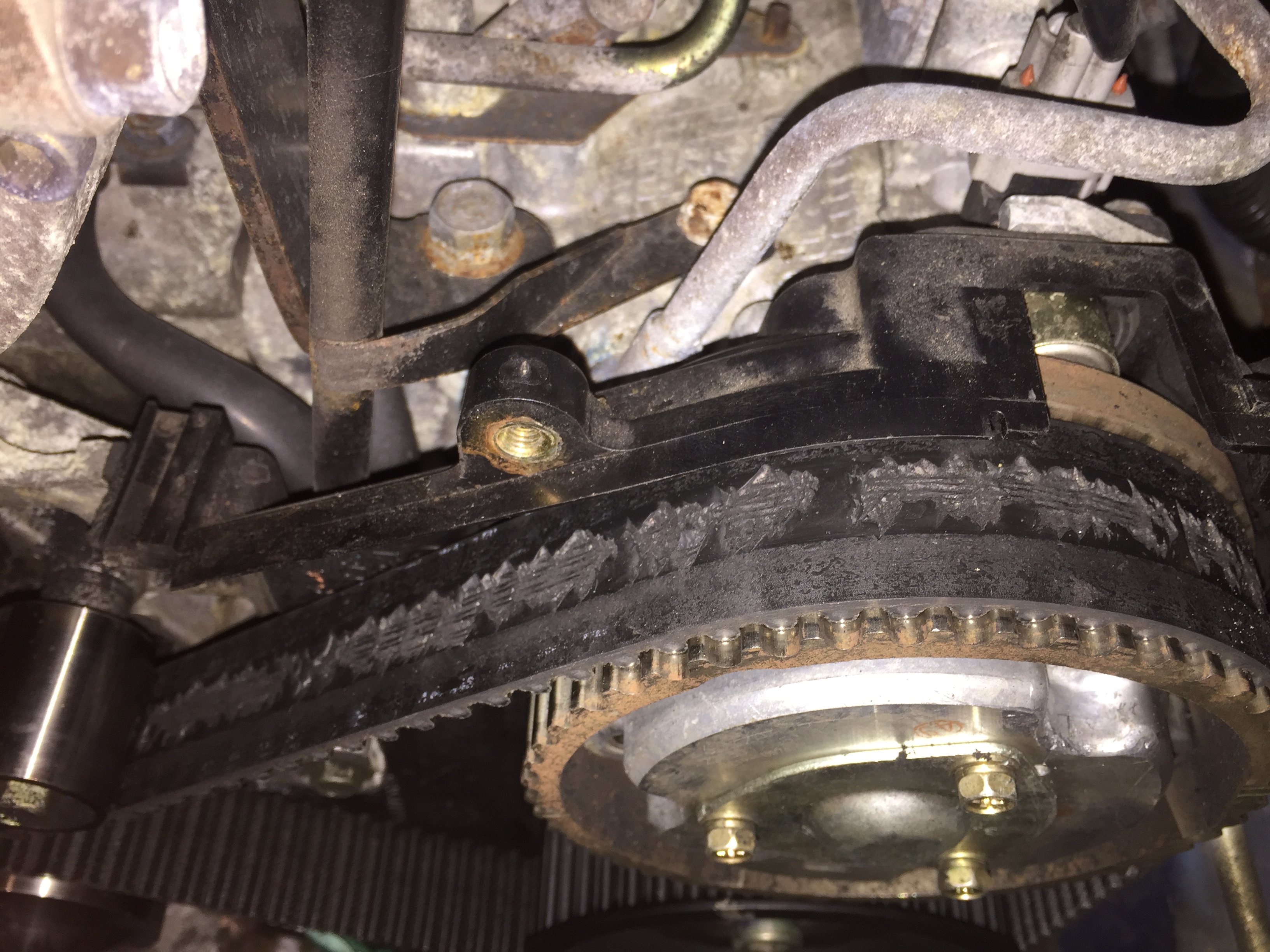

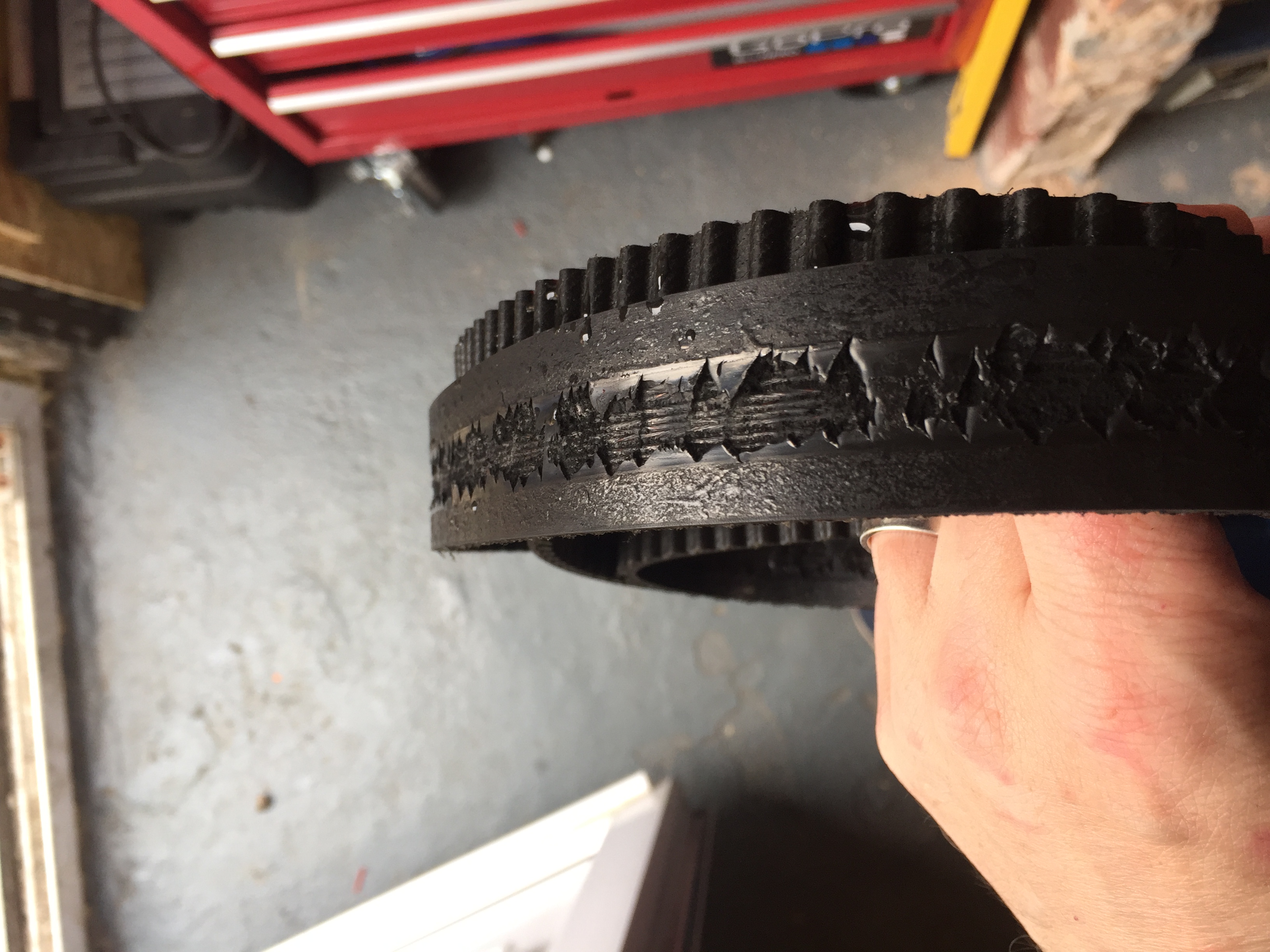

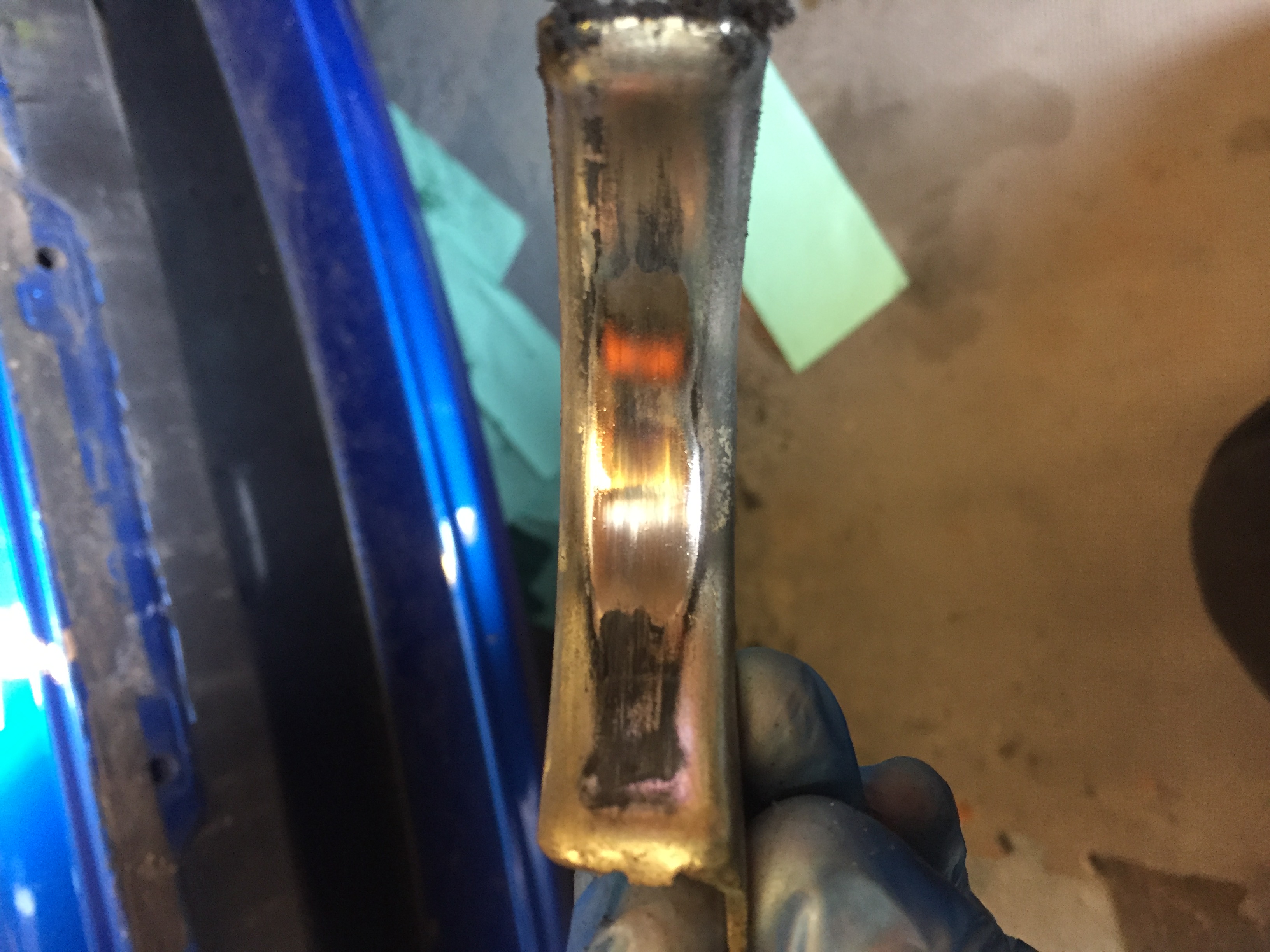

Was just giving the car a good check over as i have just bought it and found this little surprise hiding behind the cam cover . Full service history and cambelt change in 2015 but looks like the belt holder was fitted incorrectly.
Attached Thumbnails Click image for larger version

Name:	IMG_1985.JPG
Views:	0
Size:	2.18 MB
ID:	72089   Click image for larger version

Name:	IMG_1987.JPG
Views:	0
Size:	1.17 MB
ID:	72090   Click image for larger version

Name:	IMG_1989.JPG
Views:	0
Size:	1.77 MB
ID:	72091
Old 24 June 2018 | 09:55 AM
  #2
ossett2k2's Avatar
ossett2k2
Scooby Regular
iTrader: (9)

Joined: Jan 2007
Posts: 6,433
Likes: 39
From: Leeds
Default

Wow! Well spotted mate
Old 24 June 2018 | 11:41 AM
  #3
NotFromSomerset's Avatar
NotFromSomerset
Scooby Regular

Joined: Dec 2013
Posts: 211
Likes: 0
From: Nowhere
Default

That could have been VERY expensive
Old 24 June 2018 | 12:01 PM
  #4
Tidgy's Avatar
Tidgy
Scooby Regular

Joined: Sep 2004
Posts: 23,118
Likes: 150
From: Notts
Default

def dodged one on that for sure
Old 24 June 2018 | 12:29 PM
  #5
ray54's Avatar
ray54
Scooby Regular

Joined: May 2017
Posts: 498
Likes: 41
From: up north
Default

Well saved!!!! prove that it always pays to have work done by someone who knows what there are doing.............
Old 25 June 2018 | 08:21 AM
  #6
Cambs_Stuart's Avatar
Cambs_Stuart
Scooby Regular
iTrader: (3)

Joined: Sep 2015
Posts: 1,789
Likes: 3
From: Cambridge
Default

I had the same on my wrx. I bought it with "cambelt changed" on the ad, but it was done by some backstreet place.
I had it done properly some months later by Tim Farmer who found the guide had been tightened down onto the belt, which had then scored a groove in the belt, and the guide had got hot enough to burn off the plating.
The belt was starting to crack in various places where it had melted and stuck to the guide after a long run.
Very nearly a disaster.
