Gangle

Where does the STI sticker on the doors go (`03 STI UK)??

I have a car that was not only de-badged by its one very strange previous owner but also at the time de-spoilered (if that’s a word)…
I have finally got round to getting the last badges, it’s taken me some time too.

So here I am with the door badges 350mm or so long, and wondering where they go?
Above the door crease or below it?
And how far back should I start them from the door shut??

Any help or pictures would be a great help.

scotthldr

I ran mine about 10 mm below the door crease and about 25mm in from the door edge. Remember to check if the image is handed ie the pink sti is closer to the door edge on one side where as the grey lettering is closest on the other side. I will check for you and get back in touch. Below is the 06 style

Pasenger Side

Driver Side

scotthldr

Ok, from the pics that I have seen the drivers door lettering runs backwards with the pink STI closest to the the door edge, while on the passenger door it runs normal with the pink STI closest the door edge.

Like this

Driver door

SUBARU TECNICA INTERNATIONAL STI

Pasenger door

STI SUBARU TECNICA INTERNATIONAL


Hope this helps

FlyinbySTi

like this

and this

FlyinbySTi

I could go snap a closer up pick if you want, the car is in the parking lot right now.

scotthldr

No, your car is the same as mine Version 9 style, I think his is a Version 8 maybe 7 which are different and are laid out as my 2nd post above with the Pink STI closest to door edge on both sides.

Bug Eyed Peas

I think the version 8 was the same as the 7 with stickers on the doors

If someone could clarify this, I can take some piccies & measurements to help out

Ant

scotthldr

Yeah think same, also only difference being that the version 7 graphics are smaller

T5NYW

iTrader: (4)

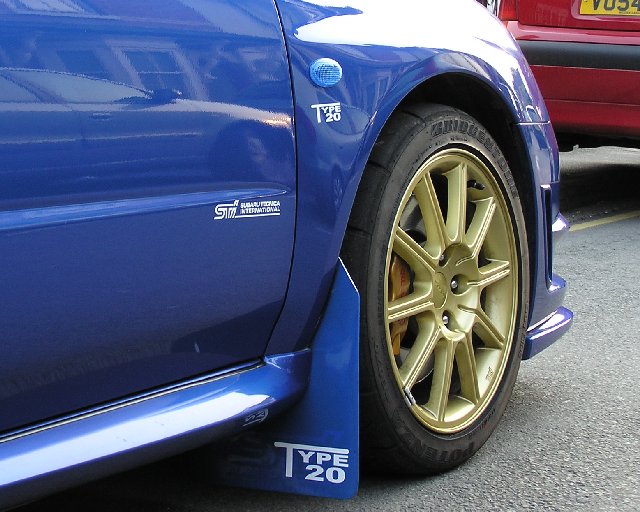

Normally 20mm from the door, Although mine are white and on first attempt, l on a slight slant) they hard to judge level as crease and fold are not level to either window or skirt

Try in place with masking tape before stciking down. view at a few angle to see if "Looks" right, then leave one edge stuck down, lift up and peel off backing and brush down




IMHO

Tony

Gangle

WOW!

A huge thanks to you guys on your help on this. Really didnt expact help in that detail!

Cheers!!
